N系列R600a壓縮機技術參數表（低背壓）

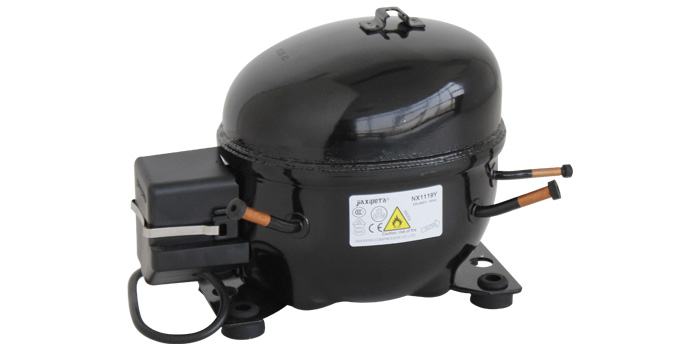

TECHNICAL DATASHEET OF N SERIES R600a REFRIGERATION COMPRESSOR（LBP） |
| Compressor |
Displ. |
Cooling |
Motor |
Vol./Fre. |
制冷量Capacity |
COP |
運行電容
Running Capacitor
(µF) |
認證
Certificate |
| Model |
|
Type |
Type |
|
（W） |
（W/W） |
| 壓縮機型號 |
氣缸容積 |
冷卻方式 |
電機型式 |
電壓/頻率 |
ASHRAE |
CECOMAF |
ASHRAE |
CECOMAF |
| |
(cm3) |
|
|
（V~/Hz） |
(-23.3oC) |
(-28/40oC) |
(-25oC) |
(-23.3oC) |
(-28/40oC) |
(-25oC) |
| NX1080Y |
5.50 |
ST |
RSCR |
220-240~/50 |
94 |
|
71 |
1.83 |
|
1.43 |
2.0 |
VDE,CCC |
| NX1090Y |
6.00 |
ST |
RSCR |
220-240~/50 |
105 |
|
79 |
1.83 |
|
1.43 |
2.5 |
VDE,CCC |
| NX1110Y |
6.70 |
ST |
RSCR |
220-240~/50 |
117 |
|
88 |
1.83 |
|
1.43 |
2.5 |
VDE,CCC |
| NX1111Y |
7.20 |
ST |
RSCR |
220-240~/50 |
130 |
|
98 |
1.83 |
|
1.43 |
3.0 |
VDE,CCC |
| NX1112Y |
8.10 |
ST |
RSCR |
220-240~/50 |
145 |
|
109 |
1.83 |
|
1.43 |
3.0 |
VDE,CCC |
| NX1113Y |
8.90 |
ST |
RSCR |
220-240~/50 |
155 |
|
116 |
1.83 |
|
1.43 |
2.5 |
VDE,CCC |
| NX1114Y |
9.60 |
ST |
RSCR |
220-240~/50 |
172 |
|
129 |
1.83 |
|
1.43 |
4.0 |
VDE,CCC |
| NX1116Y |
10.50 |
ST |
RSCR |
220-240~/50 |
186 |
|
140 |
1.83 |
|
1.43 |
4.0 |
VDE,CCC |
| NX1117Y |
11.20 |
ST |
RSCR |
220-240~/50 |
198 |
|
149 |
1.83 |
|
1.43 |
4.0 |
VDE,CCC |
| NX1119Y |
12.1 |
ST |
RSCR |
220-240~/50 |
215 |
|
161 |
1.82 |
|
1.42 |
4.0 |
VDE,CCC |
| NX1120Y |
13.2 |
ST |
RSCR |
220-240~/50 |
232 |
|
174 |
1.82 |
|
1.42 |
4.0 |
VDE,CCC |
Notes:
|
(1) All data is subject to change without notice.
表列參數如有更改恕不通知。 |
|
Test conditions測試工況: |
(oC) |
|
|
|
| |
(2) ST--自然冷卻Static colling； F--風冷Fan |
|
|
|
ASHRAE |
CECOMAF |
|
|
| |
|
|
蒸發溫度Evaporating temp. |
-23.3 |
-25 |
|
|
| |
|
|
|
|
|
|
冷凝溫度Condensing temp. |
54.4 |
55 |
|
|
| |
|
|
|
|
|
|
過冷溫度Subcooling temp. |
32.2 |
55 |
|
|
| |
|
|
|
|
|
|
吸氣溫度Suction temp. |
32.2 |
32 |
|
|
| |
|
|
|
|
|
|
環境溫度Ambient temp. |
32.2 |
32 |
| |
|
|
